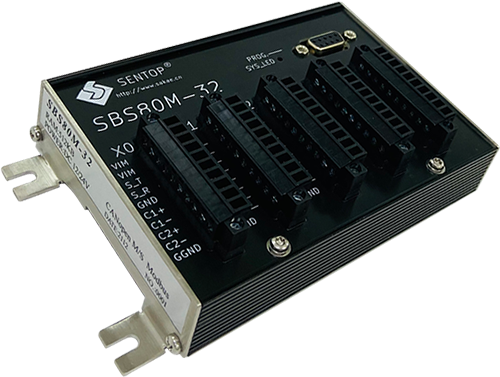

SBS80M series vehicle Programmable controller (PLC) is the star product of Sibo applied in the special vehicle industry. It is compact, reliable, versatile and easy to develop and use, which is the best choice for the special vehicle industry control applications. It small size (only 153x90x30mm) big function (to provide a variety of input/output interface: 28DI / 8AI / 2Pulse_I / 8DO / 4PWM / 2CAN / 2Uart/DCV) can be described as "Move thousand cattle with four tales"!

Overview of SBS80M

SBS80M series products are based on Codesys2.3 RTE to achieve the bottom development, application in Codesys2.3 free development environment can realize the PLC application program writing, the manufacturer provides standard library and device driver library, can be convenient and quick to complete the application configuration.

Function introduction

System main configuration: Processor: Infineon 16bit C166 core, 32bit DSP, 80Mhz main frequency, 320K Flash + 32K RAM, memory: 512K, Flash: 2MB, power-off RAM: 8K

I/O configuration:

Communication interface:

Features

1. The aluminum shell of SBS80M controller not only provides strong protection, but also has the function of shielding and electromagnetic isolation;

2. The sensor power supply VO-S of the controller is connected to the adjacent VI-Q drive power supply. If the VI-Q is disconnected from the power supply, the corresponding sensor power output VO-S is also disconnected.

Programming: Support Codesis 2.3 ForWin7, support 6 language programming and mixed programming: IL-instruction table, LD- flow chart, FBD- function block chart, ST- structured text, FsC-sequence function chart, CFc-continuous function chart.

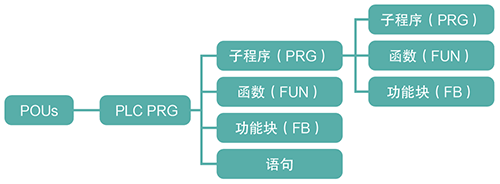

程序組織單元（POU）結(jié)構(gòu)

SBS80M series products have many advantages and powerful functions, if you need more I/O ports, we can also provide expansion modules. Shanghai Sibo welcome your choice!

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.
