Sibo занимается потенциометрами и датчиками уже 30 лет.

Y120FCB
Y120FCB

Y120FCB

Potentiometer-type Pedals

瀏覽量： Вернуться: 2023-01-09

    Характеристики：

  • Coductive plastic potentiometer type

  • Metal case with high reliability

  • Vibration environment

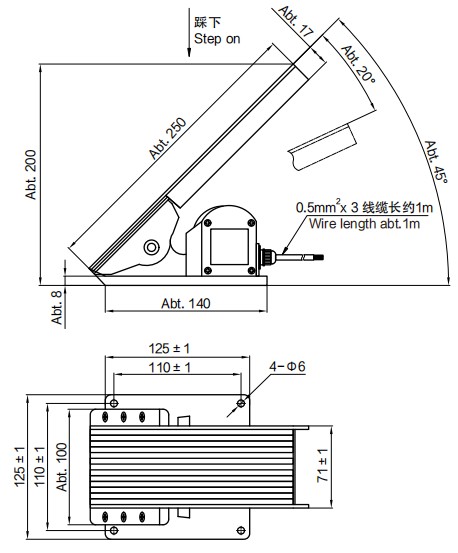

Измерение


Параметр

General Specifications

Operating angle

Approx. 20°

Operating force

10～28N

Mechanical life expectancy

5,000,000

Operating temperature

-20℃~+70℃

Storage temperature

-20℃~+70℃

Vibration

10~55Hz 98m/s²

Shock

294m/s² (11ms)

Mass

Approx. 1500g

Protection degree

IP54

Electrical Specifications (Potentiometer)

Standard resistance

10KΩ±20%

Independent linearity tolerance

±3%

Resolution ratio

Essentially infinite

Effective electrical angle

Approx. 100°

Power rating

0.4W

Output smoothness

< Against input voltage 0.2%

Contact resistance variation

<5%CRV

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Electrical Specifications (Switch)

Electrical specifications (Switch)

Microswitch

Rating

250V.A.C./5A

Life expectancy

10,000

Insulation resistance

>100MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.)

Terminal Connection Instructions

Color

Red，Black，White

Title

VCC，GND，OUT

Special Specifications Available

Electrical specifications

POT.with other resistance(1K, 2K, 5K, etc.), special output characteristic, speical cable length, etc.

Other special specifications

With matching signal module
