Sibo занимается потенциометрами и датчиками уже 30 лет.

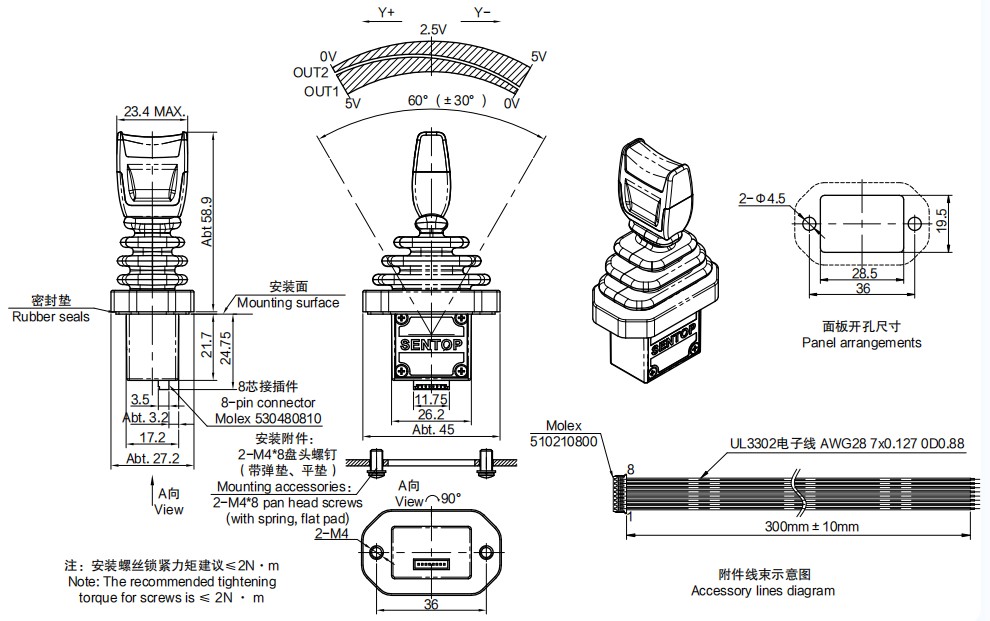

JH22B
JH22B

JH22B

Fingertip joystick

瀏覽量： Вернуться: 2023-01-09

    Характеристики：

  • Fingertip Joystick

  • Coloured cap

  • Available redundant output

Измерение


Параметр

General Specifications

Operating angle

Approx. ±30°（From center position）

Operating force

Approx. 3.5N~8.5N

Max. operating force

50N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature range

-20℃~+85℃

Storage temperature range

-20℃~+85℃

Mass

Approx. 38g

Protection grade

IP67 (Electrical parts），IP65 (Above panel）

Electrical Specifications

Input voltage

5V±10%，9~30V，15~30V，15~30V

Output signal

0～100%Vcc，0~5V，0~10V，4~20mA

Current consumption (no-load)

<16mA，<25mA，<25mA，<35mA

Load resistance

>100KΩ，>100KΩ，>100KΩ，<600Ω

Output deviation at both ends

<1%.Vcc，<50mV，<50mV，<0.1mA

Independent linearity tolerance

±2%

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Terminal Connection Instructions

Color

Red， Black，White，Green，Green，Yellow，Black，Red

Title

VCC1，GND1，OUT1，Switch 1，Switch 2，OUT2，GND2，VCC2

Port

1，2，3，4，5，6，7，8

Special Specifications Available

Other output signals

10V applied, 0~10V output；3.3V applied, 0~5V output；PWM

Special knob

Special knob and motifs on the knob

Other special specifications

With customer-specific connectors；With protection module
