Sibo занимается потенциометрами и датчиками уже 30 лет.

DC10-27B
DC10-27B

DC10-27B

Digital-Readout Dials

瀏覽量： Вернуться: 2023-01-09

    Характеристики：

  • Digital-Readout

  • Low-cost Item　

Измерение


Параметр

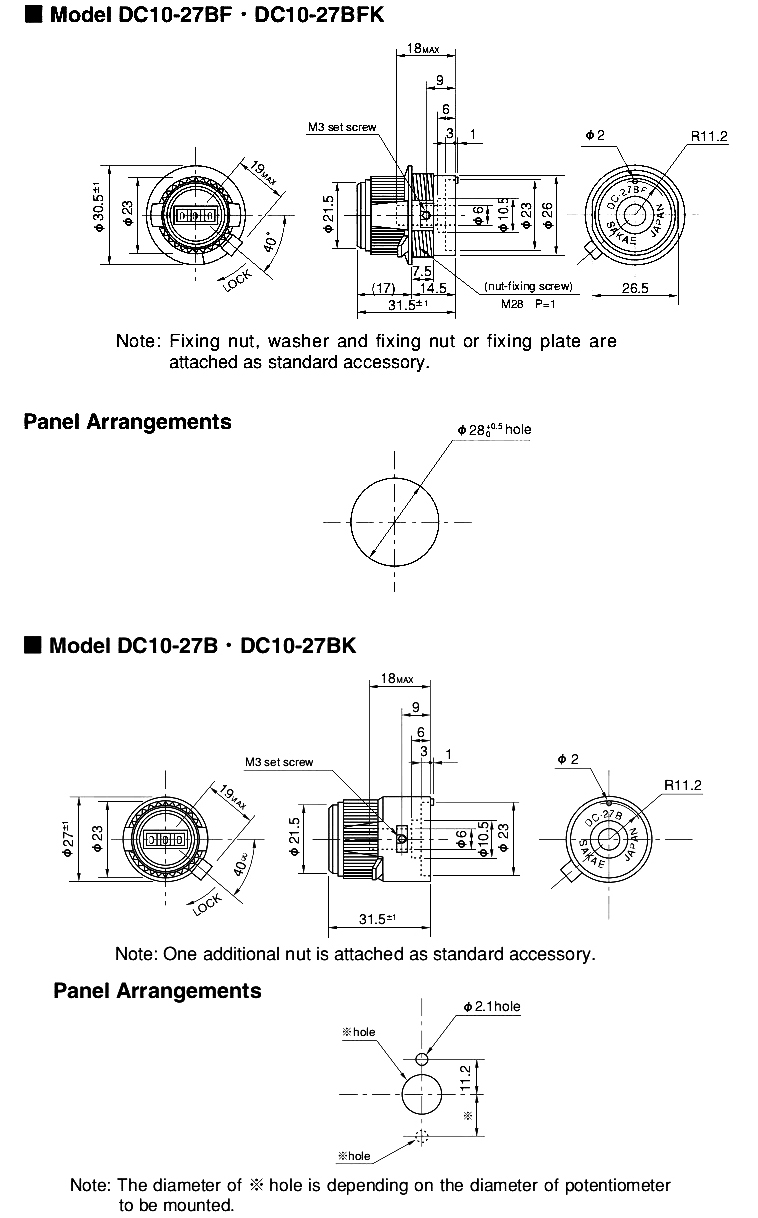

General Specifications (DC10-27B,DC10-27BK)

Model No.

DC10-27B,DC10-27BK

Number of Turns-Counting.

10

Max. Indication (Min. readout)

999(1/5000)

Matching Shaft Dia. (mm)

Standard 6, Special 3,3.175,4,6.35

Combinable Helicalohm Pot.

(Matching shaft length: 18.5 ～ 20.6mm)n＝Number of turns: 22HHP-NN22HP-N, 22HP-NN; 25HP-ND, 22HHP-N,

Operating Temperature Range

-30℃~+60℃

Lock Device

Yes

Mass

Approx.30g

General Specifications (DC10-27BF,DC10-27BFK)

Model No.

DC10-27BF,DC10-27BFK

Number of Turns-Counting.

10

Max. Indication (Min. readout)

999(1/5000)

Matching Shaft Dia. (mm)

Standard 6, Special 3,3.175,4,6.35

Combinable Helicalohm Pot.

(Matching shaft length: 18.5 ～ 20.6mm)n＝Number of turns: 22HP-N, 22HP-NN, 22HHP-N; 25HP-ND, 22HHP-NN

Operating Temperature Range

-30℃~+60℃

Lock Device

Yes

Mass

Approx.30g
