Sibo занимается потенциометрами и датчиками уже 30 лет.

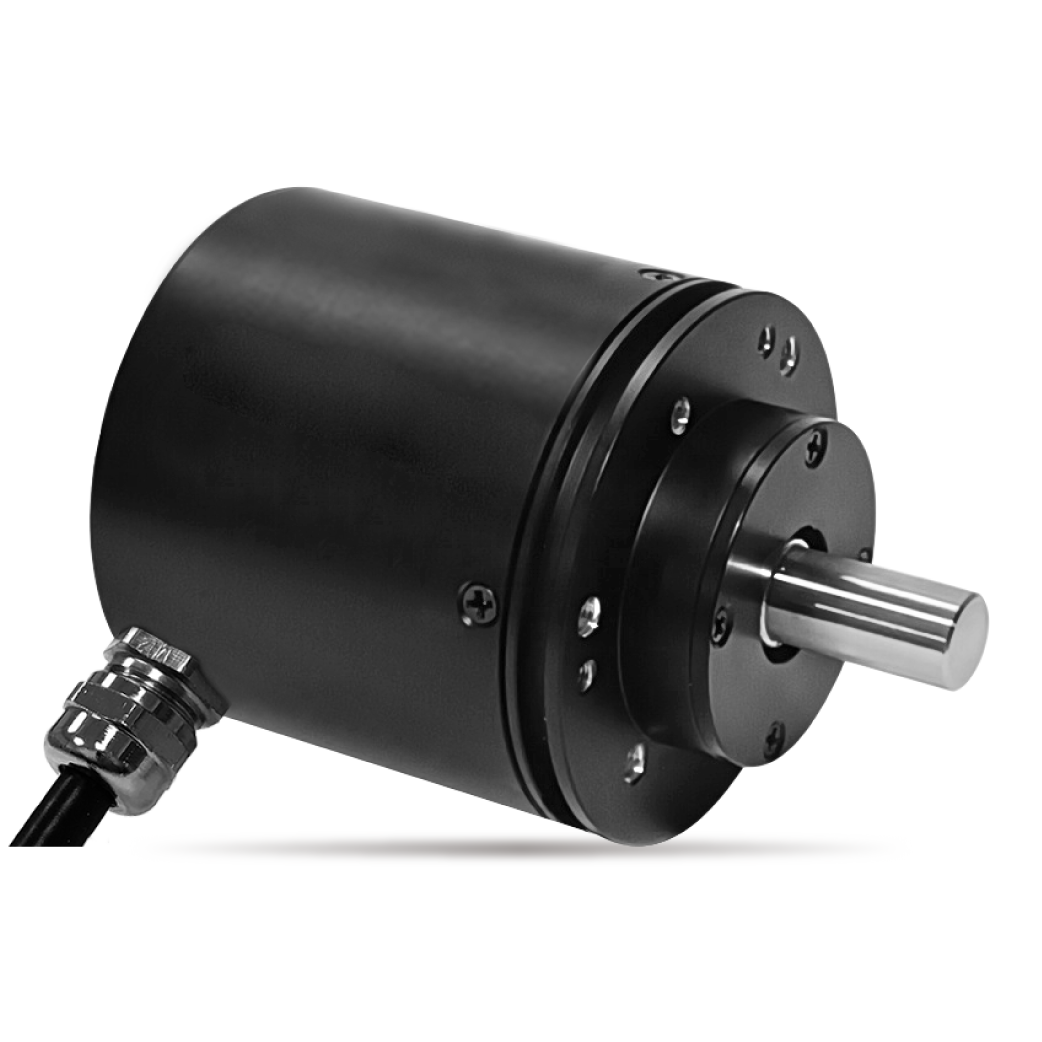

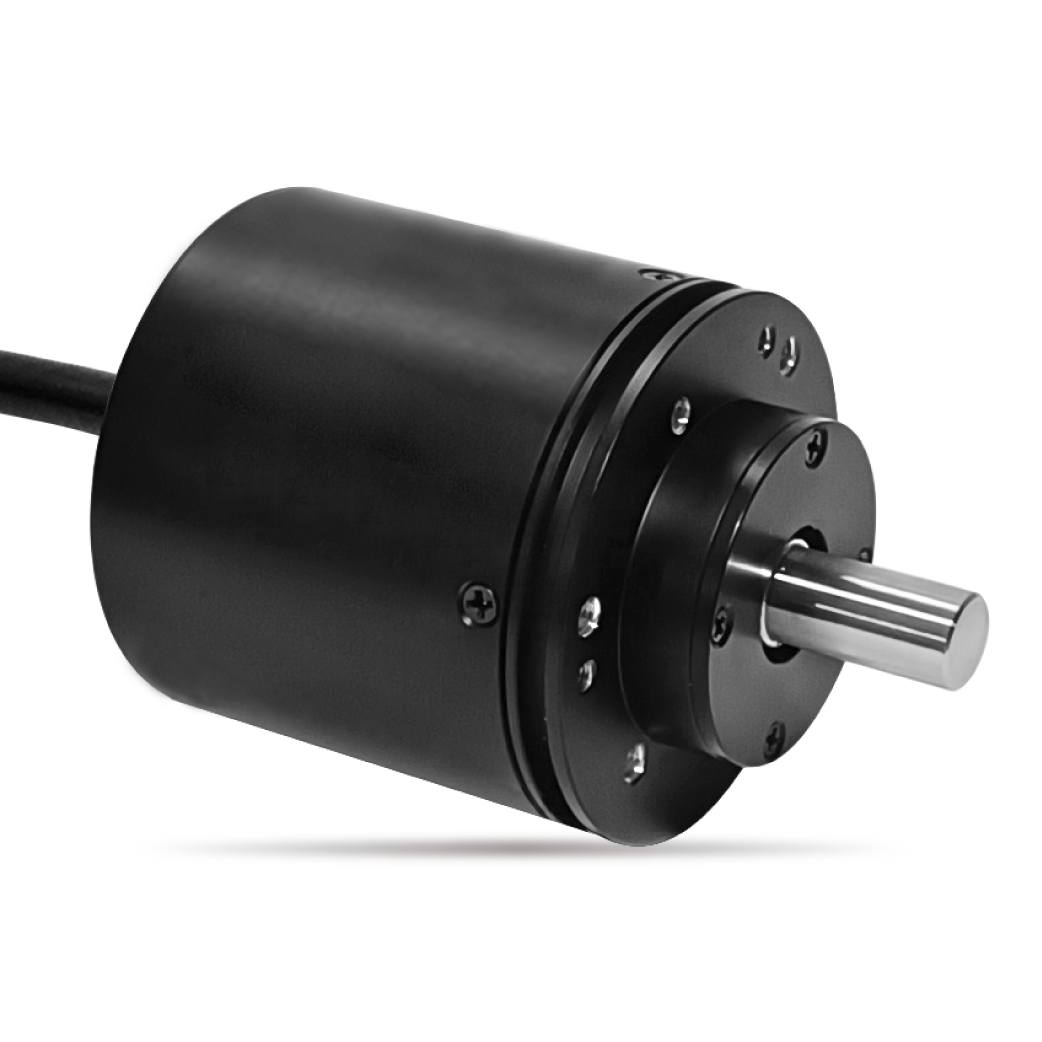

EBSD58A
EBSD58A
EBSD58A
EBSD58A

EBSD58A

瀏覽量： Вернуться: 2023-10-27

    Характеристики：

  • Magnetic encoders

  • High protection degree

  • With one couple of precision ball bearings

  • Heavy-duty

  • Antimagnetic interference

  • Screw&Servo mount

Измерение


Параметр

General Mechanical Specifications

Protection degree

Housing case IP67；Shaft IP65, Optional IP67

Staring torque

<50mN·m

Life expectancy

>100,000,000

Mass

Approx.360g

Housing material

Anodized aluminium alloy

Shaft material

tainless steel

Shaft load

Radial 80N, Axial 40N

Shaft diameter

φ6/ φ8/ φ10/ φ12

Environmental Specifications

Operating temperature range

-30℃～+105℃

"Storage

-30℃～+105℃

temperature range"

100m/s²,55Hz~2000Hz (EN 60068-2-6)

Vibration

100m/s²,6ms (EN 60068-2-27)

Shock

Contact discharge ±8KV，

ESD durability

Aerial discharge ±15KV，EN61000-4-2:2009"

EMS durability

100V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，

General Electrical Specifications

Standard model

EBSD58A-S1-W12485

Applied voltage

9V-30V

Current consumption (no-load)

≤ 70mA

Single-turn resolution

4096（12Bit）；Max 16384（14Bit）

Protocol

Modbus RTU slave

Baud rate

1200~115200bps，9600bps

Address

1~200，1

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special shaft

Special length of shaft, special diameter, special machining on shaft (like shaft slotted、fatted etc.) or blind hole

Customized protocol

We can make customized protocol according to customers' requirements.
