Sibo занимается потенциометрами и датчиками уже 30 лет.

EAS36A
EAS36A

EAS36A

Absolute Single Turn Encoders

瀏覽量： Вернуться: 2023-08-08

    Характеристики：

  • Magnetic encoders

  • High protection degree IP67

  • With one couple of precision ball bearings

  • Output signal: SSI differential signal

  • Screw&Servo mount

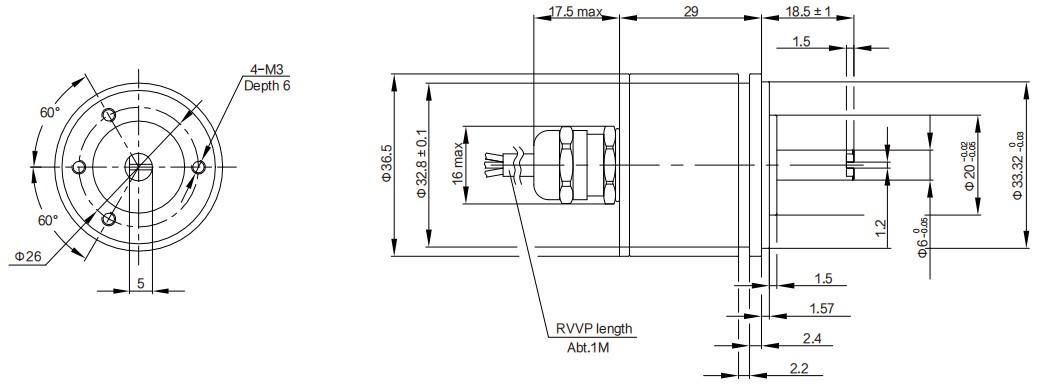

Измерение


Параметр

General Mechanical Specifications

Protection degree

IP67

Staring torque

＜1mN·m

Life expectancy

>100,000,000

Mass

Approx.100g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-40℃～+85℃

Storage temperature range

-40℃～+85℃

Vibration

100m/s²,55Hz~2000Hz (EN 60068-2-6)

Shock

1000m/s²,6ms (EN 60068-2-27)

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

EAS36A-S2-W12A

Applied voltage

9V-30V

Current consumption (no-load)

≤80mA

Single-turn resolution

4096 (12 Bit)

Interface

SSI Differential signal

Code rule

Binary

Signal

TTL

Update signal

10μs

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、fatted etc.)
