Sibo занимается потенциометрами и датчиками уже 30 лет.

R18
R18

R18

1-turn Contactless Magnetic POT.

瀏覽量： Вернуться: 2023-01-09

    Характеристики：

  • Magnetic rotary sensor (Hall effect)

  • High protection degree

  • Small size (Housing dia.Φ18mm)

  • With one couple of precision ball bearings

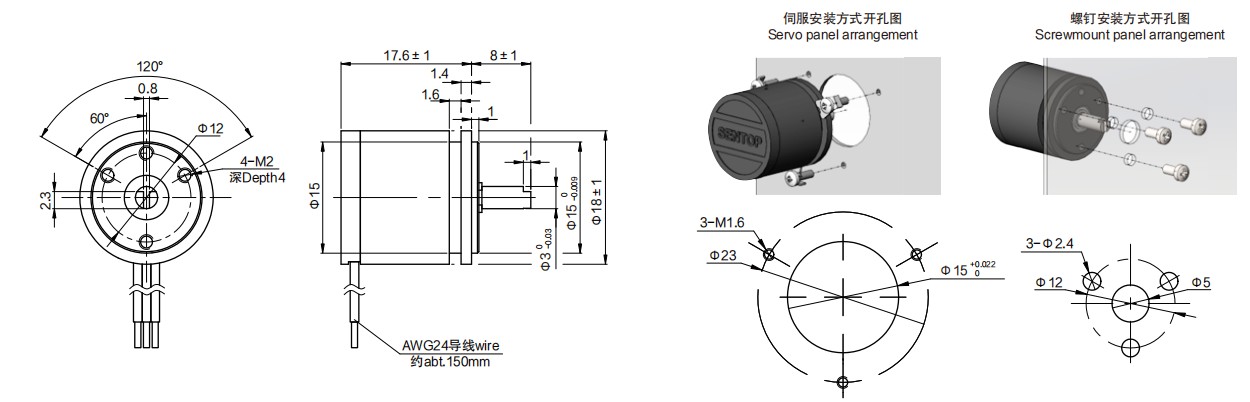

  • Servo&Screw mount

Измерение


Параметр

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP67

Operating torque

<1mN·m

Max.speed

6000rpm

Life expectancy

100,000,000

Mass

Approx.20g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-40℃～+125℃

Storage temperature range

-40℃～+125℃

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R18 0505 W360

Input voltage

5V±10%

Output signal

0～100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Special Specifications Available

Other output signals

Available for incremental、PWM、SER、SSI、SPI.

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、fatted etc.)
