Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

SBS400
SBS400

SBS400

Signal Converter

瀏覽量： Tiempo: 2023-01-09

    Características：

  • Output signal can be set

  • Optional output signal: 4~20mA、0~10V

  • High accuracy、high stability、convenience

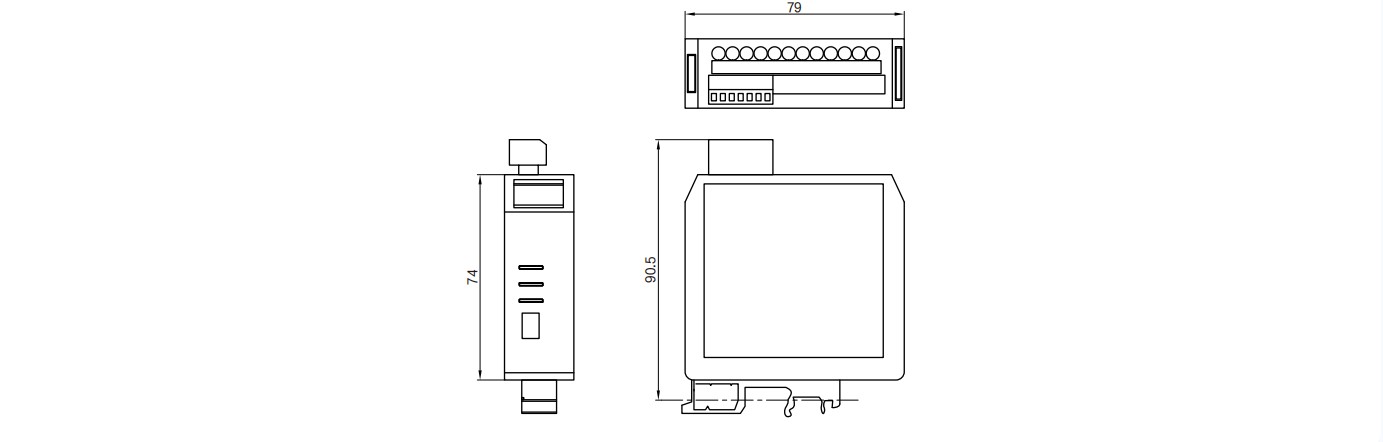

Dimensión


Parámetro

General Mechanical Specifications

Protection degree

IP20

Pollution and safety level

Pollution degree II，CAT.III

Installation mode

Guide rail）35mm (DIN EN 50022)

Housing material

PA66（Not inflammable，green）

Environmental Specifications

Operating temperature range

-25℃~+60℃

Storage temperature range

-25℃~+85℃

General Electrical Specifications

Resistance range

100Ω~500Ω

Applied voltage

18~30VDC，±10%

Output signal

0~10V / 4~20mA

Power rating

Max.2.5W

Accuracy

±0.01%

Load resistance

>1KΩ(Voltage output)、<500Ω(Current output)

Resolution

16bit

Temperature coefficien

Max.10ppm

Dielectric strength

1500V.A.C/1 min

Response

0.2ms

Ripple

5mV residual ripple at output voltage of 10V
