Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

JH22C
JH22C

JH22C

瀏覽量： Tiempo: 2025-03-31

    Características：

  • Fingertip joystick

  • Available redundant output

  • Full rubber cover

  • Luminous effect is optional

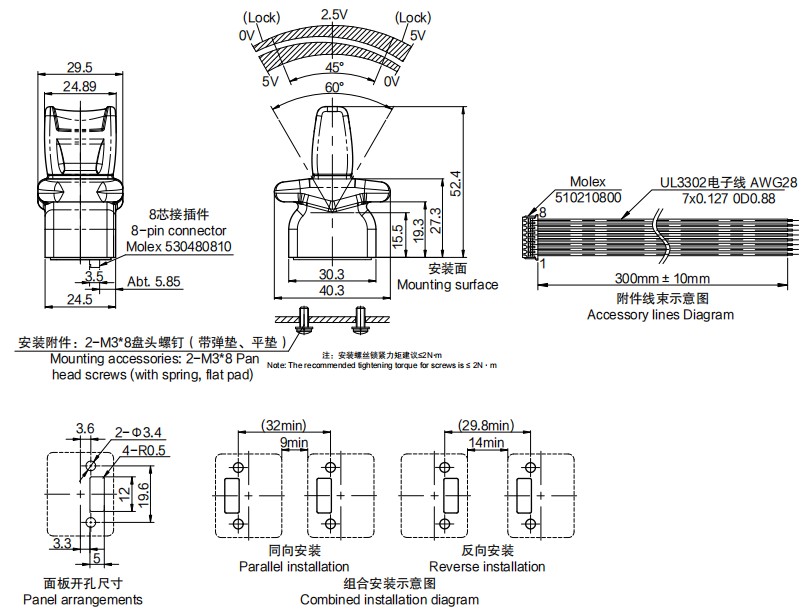

Dimensión


Parámetro

General Specifications

Operating angle

Approx. ±30°（From center position）

Operating force

Approx. 2.5N~3N

Max. operating force

50N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature range

-20℃~+85℃

Storage temperature range

-20℃~+85℃

Mass

Approx. 20g

Protection grade

IP67 (Electrical parts），IP65 (Above panel）

Electrical Specifications

Input voltage

5V±10%

Output signal

0～100%Vcc

Current consumption (no-load)

<16mA（single output）

Load resistance

>100kΩ

Output deviation at both ends

<1%Vcc

Independent linearity tolerance

±2%

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Special Specifications Available

Other output signals

PWM

Special knob

Special knob and motifs on the knob, luminous effect

Other special specifications

With customer-specific connectors, with protection module
