As a leader in the potentiometer industry, Sibo has brought countless classic products to you. Our technological exploration and innovation never stop. When customers are looking for solutions to convert potentiometers into analog signals, Sibo's signal converter modules can enable potentiometers to output more analog signals to meet your needs.

Sibo modules make full use of signal processing technology to ensure efficient and accurate conversion. Today, let's walk into Sibo's analog signal converter modules to explore more possibilities and add value to your application!

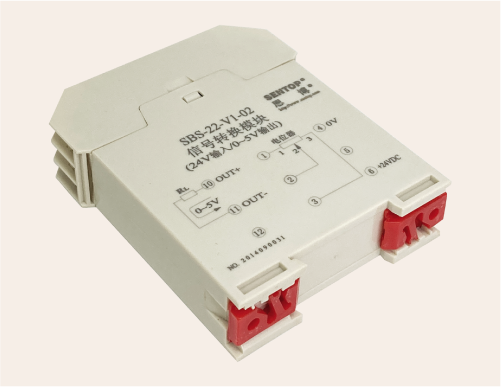

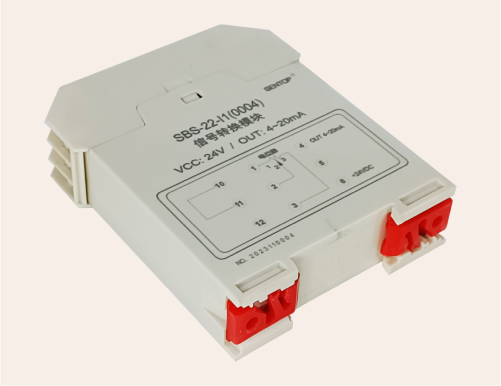

SBS-22

SBS-22 is a classic current signal converter module, which is used with potentiometers. The output of the potentiometer can be converted into 4~20mA current signals, can be 4-wire isolated type, or 2-wire or 3-wire non-isolated type. The product has stable performance and high cost-effectiveness.

SBS022

SBS022 is the upgraded version of SBS-22, which is compatible with a wider range of resistance values for potentiometers. This non-isolated signal converter module supports output converter modes 4-20mA (2-wire or 3-wire) and 0-10V (3-wire). It is cost-effective, easy to install, suitable for the applications in various industrial equipment and control systems.

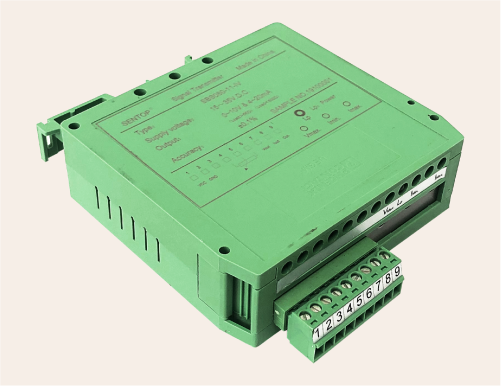

SBS080

SBS080 is a power-isolated precision signal converter module for potentiometers, with high precision and excellent stability. This module has wide voltage power supply and is suitable for the potentiometers with resistance values of 1K and above. It supports 4-20mA and 0-10V two converter modes, and can set the amplitude of the conversion signals. Its rich functions can flexibly meet various application needs, greatly expanding the function range of the potentiometers

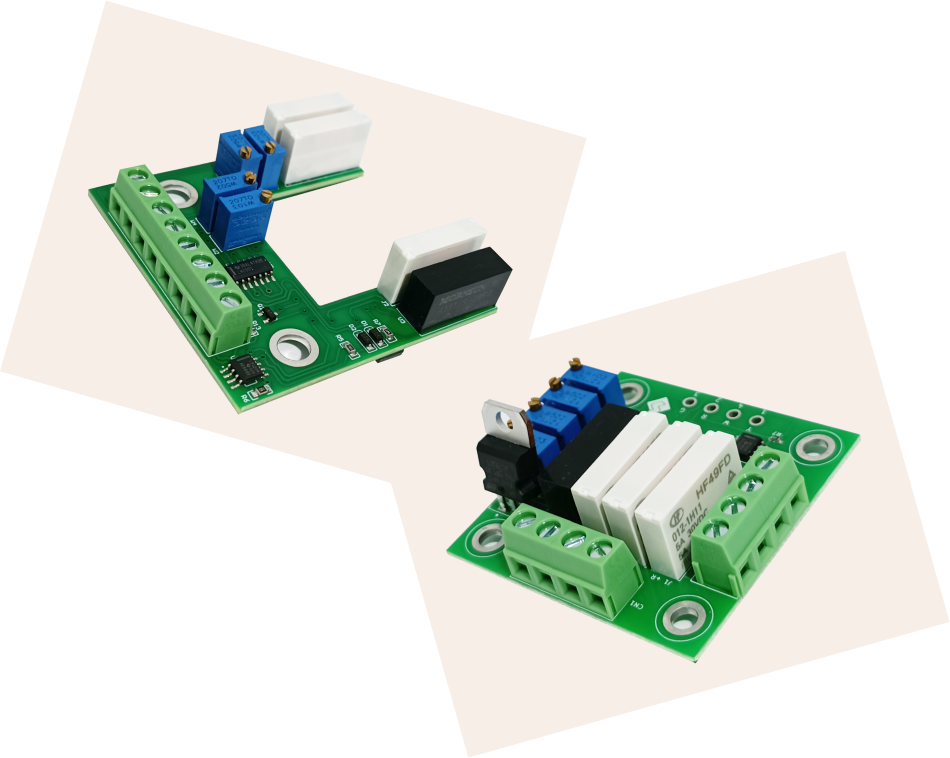

480xP

480xP is another series of signal converter module from Sibo. Its main function is to convert the output of the potentiometer on the joystick into various voltage and current signals, so that the module can output an additional 3 switching signals, which can be used as the middle switch signal or the direction switch signal of the joystick.

There are currently two series of 480xP, 4801P and 4803P, respectively corresponding to Sibo's best-selling products, the 30JL and 50 series joysticks, which greatly expand the function of these two series joysticks.

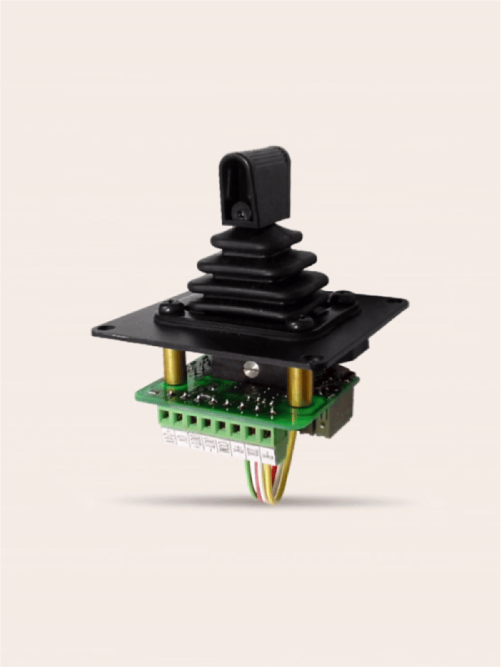

Product application of joystick matching module

Sibo can also customized modules according to the shape and structure of various products. If you have any needs in this regard, please feel free to contact us at any time.
