Sibo has focused on potentiometers and sensors for 30 years.

8FLP10D
8FLP10D

8FLP10D

Linear Conductive Plastic POT.

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Linear Potentiometers/Linear Sensors

  • Conductive Plastic

  • With front and rear exteded shaft

  • Low-cost Item　

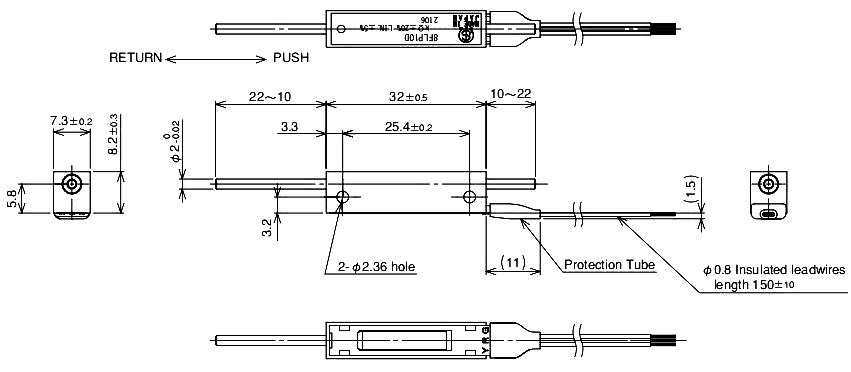

Dimension


Parameter

General Specifications

Standard Resistance Values

1kΩ,2kΩ,5kΩ,10kΩ

Total Resistance Tolerance

Standard Class ±15%(L)

Independent Linearity Tolerance

Standard Class ±2.0%

Resolution

Essentially infinite

Output Smoothness

<against input voltage

Contact Resistance Variation

<6%C.R.V.

Power Rating

0.2W

Electrical Stroke

11±0.5mm

Mechanical Stroke

About12mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<3N(300gf)

Stopper Strength

Approx.10N(1kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx.5g

Special Specifications Available

Special shaft type

Special machining on the shaft
